Project Description

Grand G420

Description

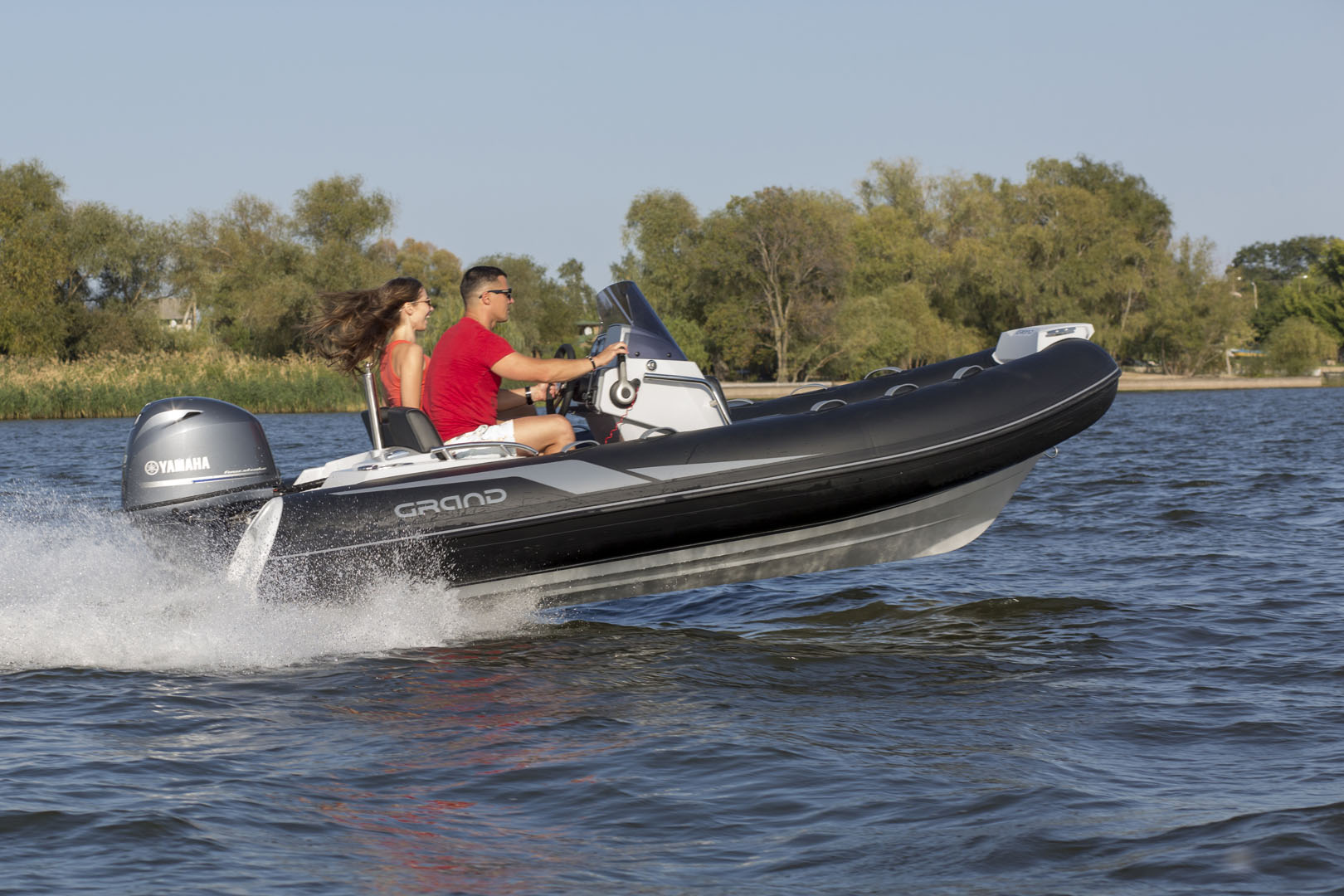

We are delighted to introduce the new G420, the latest in the Golden Line Series. The design follows the well-established Grand contemporary philosophy with a bright, dynamic appearance and aerodynamic lines.

Whilst filling an important niche in the mid-size luxury tender market this model, with it’s classic layout, performs equally well as a high specification family runabout.

The proven High Step Hull design ensures excellent maneuverability combined with dynamic stability and impressive speed capability. Safety handrails are fitted as standard on the port and starboard side of the ergonomically designed pilot/passenger seats and steering console. Stainless steel bow rails are also available as an option.

As with all models in the Golden Line Series, the G420 is equipped with a comprehensive list of standard equipment plus a wide range of accessories including a 55 liter built in fuel tank, that will enhance the boat’s range and add to it’s unique individuality.

Despite it’s shorter length, the boat has the same passenger capacity (6 persons) as the larger G480. And this is not the only common feature these boats share. For example they both have a similar internal width (making the G420 really comfortable). Not surprisingly therefore, with a slightly smaller tube diameter, the G420 has a very similar overall width to the G480.

Another valuable feature is the optional 55-liter built-in fuel tank.

Image Gallery

Technical Data

Models G420LF
Length overall cm 420
ft/inches 13′ 9”
Length inside cm 290
ft/inches 9′ 6”
Width overall cm 200
ft/inches 6′ 7”
Width inside cm 105
ft/inches 3′ 5”
Tube diameter cm 48
inches 19”
Bare Boat weight * kg 255
lbs 1177
Transport Boat weight ** kg 325
lbs 715
Loading capacity *** kg 800
lbs 1760
Passenger capacity 6
No of chambers 4
Engine recommended HP 40
kW 29,4
Engine max HP 60
kW 44,1
Engine weight max kg 120
lbs 264
Engine shaft length inches 20″(long)
Midsection / aft deadrise degrees 20°/ 17°
Stowed dimensions of packageNo1 cm 400
cm 165
cm 115
ft/inches 13′ 1”
ft/inches 5′ 5”
ft/inches 3′ 9”
Stowed dimensions of package No2 cm 110
cm 88
cm 108
ft/inches 3′ 7”
ft/inches 2′ 11”
ft/inches 3′ 7”
Bottom type RIB
Boat design category **** D,C

* -The bare boat weight is the weight of the empty boat without any removable accessories.
** -The transport weight is the weight of a complete boat in standard package.
*** – Because of differences of local boatbuilding standards the Loading capacity and maximum Engine Power may vary by country. Please check with your local GRAND dealers.
**** – Boat design category under European Union Directive 2013/53/EU.
