Project Description
Grand G580
Description
As a part of our on-going product development program, we are delighted to announce the introduction of our new Golden Line G580.
This new model sits neatly between two of our current best sellers – the G500 and G650.
Whilst retaining the overall styling concept of the series the G580 has its own distinctive features:
- Updated hull and tube geometry based on a synthesis of modern design and ergonomics
- Dynamic shape contouring with sweeping lines
- Plenty of storage capacity
- Optimal weight distribution with steering console and double pilot/passenger seats located centrally within the cockpit.
Test drives showed excellent results in terms of seaworthiness, load capacity and other key parameters including the range of outboards proposed. This has been achieved by combining our proven High Step Hull design with a high deadrise, spectacular contours and attention to detail throughout.
This new model has a contemporary appearance and follows the distinctive corporate identity we are developing throughout the GOLDEN LINE range. In common with all models in the series the G580 is equipped with a comprehensive list of standard equipment plus a wide range of options and accessories. These, together with new upholstery combinations will give the boat excellent customer appeal and help create a unique identity.

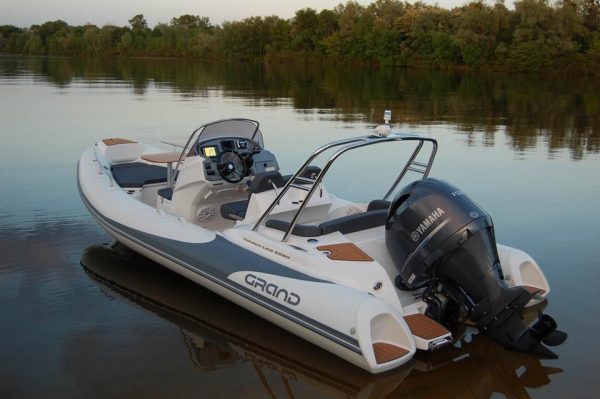

Image Gallery
Technical Data
| Models | G580LF | |
| Length overall | cm | 585 |
| ft/inches | 19′ 2” | |
| Length inside | cm | 427 |
| ft/inches | 14′ 0” | |
| Width overall | cm | 245 |
| ft/inches | 8′ 0” | |
| Width inside | cm | 145 |
| ft/inches | 4′ 9” | |
| Tube diameter | cm | 50 |
| inches | 20” | |
| Bare Boat weight * | kg | 535 |
| lbs | 1177 | |
| Transport Boat weight ** | kg | 650 |
| lbs | 1430 | |
| Loading capacity *** | kg | 1200 |
| lbs | 2640 | |
| Passenger capacity | 12 | |
| No of chambers | 5 | |
| Engine recommended | HP | 130 |
| kW | 95,6 | |
| Engine max *** | HP | 150 |
| kW | 110,3 | |
| Engine weight max | kg | 240 |
| lbs | 528 | |
| Engine shaft length | inches | 20″(long) |
| Midsection / aft deadrise | degrees | 20°/ 17° |
| Stowed dimensions of packageNo1 | cm | 578 |
| cm | 225 | |
| cm | 117 | |
| ft/inches | 19′ 0” | |
| ft/inches | 7′ 5” | |
| ft/inches | 3′ 10” | |
| Stowed dimensions of package No2 | cm | 143 |
| cm | 112 | |
| cm | 125 | |
| ft/inches | 4′ 8” | |
| ft/inches | 3′ 8” | |
| ft/inches | 4′ 1” | |
| Stowed dimensions of package No3 | cm | 105 |
| cm | 62 | |
| cm | 91 | |
| ft/inches | 3′ 5” | |
| ft/inches | 2′ 0” | |
| ft/inches | 3′ 0” | |
| Hull type | RIB | |
| Boat design category **** | D,C |
Remarks:
* -The bare boat weight is the weight of the empty boat without any removable accessories.
** -The transport weight is the weight of a complete boat in standard package.
*** – Because of differences of local boatbuilding standards the Loading capacity and maximum. Engine Power may vary by country.
**** – Boat design category under European Union Directive 2013/53/EU.
| Standard Features | G580LF | G580GLF |
| Deep-V fiberglass hull with transom extensions, bow towing eye and self-bailing cockpit | • | • |
| Soft curved multi-chamber buoyancy tube with GRP step ends | • | • |
| Bow anchor compartment with hatch and soft cushion | • | • |
| Bow step plate with navigation lights, anchor roller and cleat | • | • |
| Steering console CL-22 with front seat, windshield, side rails, grab handle and glove box | • | • |
| Double seat SD-22 | • | • |
| Molded in bow locker with large access cover, anchor compartment and soft cushion | • | • |
| Rear locker with access panel, lifters, soft seat cushion and seatback | • | • |
| Two rear pull up stainless steel cleats, two rear waterski towing eyes | • | • |
| Two front and two rear lifting eyes | • | • |
| Two rear rope hatches | • | • |
| Two front stainless steel cup holders | • | • |
| Built in fuel system with 90 liter tank and sender | • | • |
| Maintenance kit, high efficiency foot pump, two paddles and User’s manual | • | • |
| Two swimming platforms with folding ladder | • | |
| Stainless steel bow rails | • | |
| Electric package with navigation lights, bilge pump, electric horn, switches, battery switch and complete wiring | • |
| Optional Equipment | G580LF | G580GLF |
| Bow removable sundeck set with cushions / table | • | • |
| Bow removable sundeck extension with cushions | • | • |
| Water shower set with pump and 50-lit tank | • | • |
| Stainless steel navigation/waterski towing arch | • | • |
| Waterski towing/navigation arch, polished | • | • |
| Waterski towing arch with GRP top | • | • |
| Hydraulic steering system | • | • |
| Mechanical steering system | • | • |
| Steering wheel PERFORMANCE (black) | • | • |
| Stainless steel Bimini top | • | • |
| Overpressure valve Leafield with filter cap (two pcs) | • | • |
| Keel and tube protector packages | • | • |
| SILVERTEX upholstery upgrade | • | • |
| SeaDek antiskid set | • | • |
| Overall cover | • | • |
| Cover for steering console CL-22 | • | • |
| Cover for Double seat SD-22 | • | • |
| Cover for steering console CL-22, SD-22 & rear seat | • | • |
| Water shower set incl. pump, 50-lit tank | • | • |
| Fuel level meter | • | • |
| 3-arch stainless steel Bimini top No7 | • | • |
| Two rear seat extended handrails (for boat with GRP top arch ) | • | • |
