Grand G380

Grand G380 2019-04-12T11:32:54+00:00

Project Description

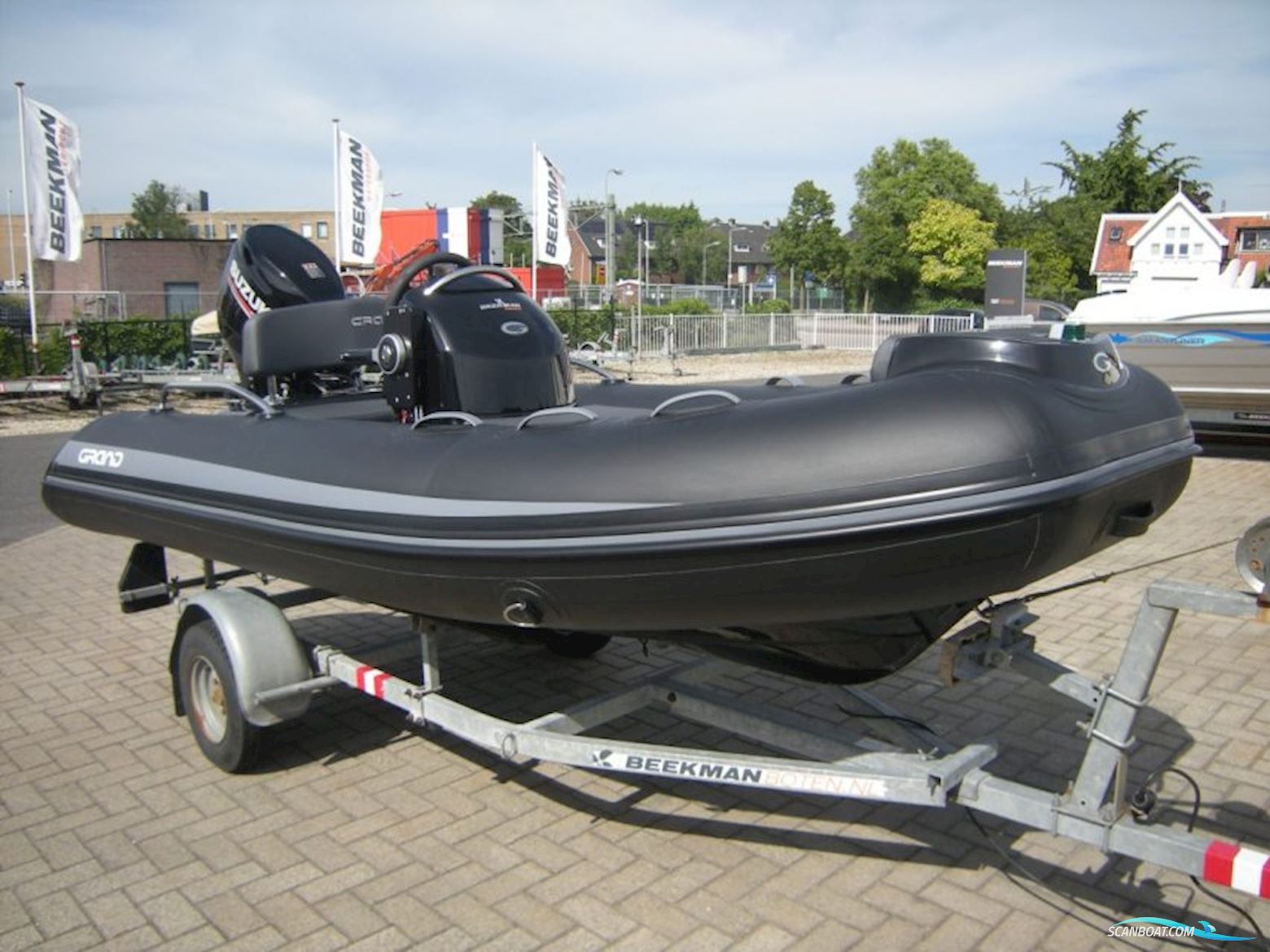

Grand G380


From the outset our GOLDEN LINE Tenders have introduced a new age of luxury in RIB design. With their superior quality, comfort and elegance, this series has become a prestigious and exclusive tender for owners of luxury yachts.

Every model is equipped with a unique water spray protection system that is designed to provide a dry ride with no water entering from the stern.

There are currently two models: The G340 (330cm or 10’10”) and the G380 (360cm or 11’10”) both with fiberglass step ends. They come fully equipped with large bow step plate with navigation light, pull up cleat and soft seat back, low profile console with handrail, and two rear handrails.

But perhaps the most important feature is their unbeatably low weight, which enables them to be accommodated by most davit systems.

The G380EF weighs in at 170kg (374 lbs.) and with a 40hp outboard around 265kg (583 lbs.).

GOLDEN LINE Tenders are available with PVC or Hypalon tubes.

Image Gallery

Technical Data

Models G380EF
Length overall, cmft/inches 36011′ 10″
Length internal, cmft/inches 2708′ 10″
Width overall, cmft/inches 1866′ 1″
Width internal, cmft/inches 882′ 11″
Tube diameter, cminches 4618″
Bare boat weight *, kglbs 170374
Transport gross weight **, kglbs 235517
Loading capacity ***, kglbs 6501430
Passenger capacity 5
No of chambers 3
Engine recommended, HPkW 3022,1
Engine max ***, HPkW 4029,4
Engine weight max, kglbs 95209
Engine shaft length inches 20″(long)
Midsection / aft deadrise degrees 17° / 15°
Stowed dimensions of package №1, cmcm







11′ 6″

5′ 2″

2′ 11″

Stowed dimensions of package №2, cmcm







2′ 9″

1′ 8″

2′ 10″

Hull type RIB
Boat design category **** D,C

* – The bare boat weight is just a weight of the emply boat without any removable accessories.
** – The transport gross weight is the a weight of the complete boat in standard package.
*** – Because of differences of local boatbuilding standarts The Loading capacity and Maximum Engine Power may vary by country.
**** – Boat design category under European Union Directive 2013/53/EU.
